Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module

Name: Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module
Brand: Cansec Wireless
Price: 5.5 USD

Wholesale Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module from china suppliers

Brand Name : Cansec Wireless

Model Number : LR1268-NA-A

Place of Origin : Beijing

MOQ : 1000

Price : USD5.5$ Per Piece

Payment Terms : T/T

Supply Ability : 20000000 units per year

Delivery Time : 5-8 weeks

Packaging Details : Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety

Chipset : SX1268 by Semtech

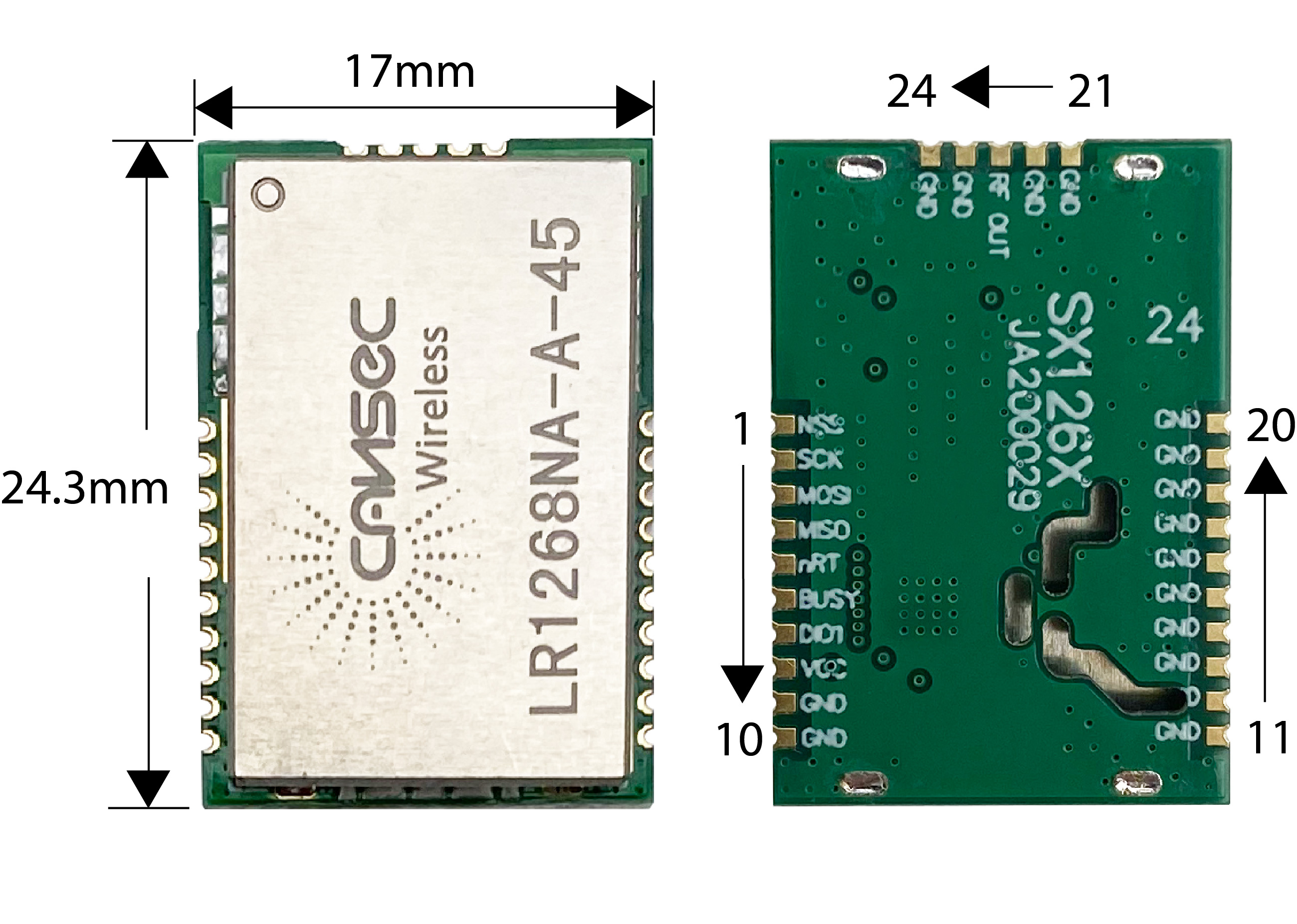

Size : 24.3*17*3.4mm

Operating Temperature : -20 ~+85℃

Operating Voltage : 1.8-3.7V

TX Power : 20dBm

RX Sensitivity : -148dBm

Sleep Current Consumption : 1.5μA

Use Environment : Smart City, Industry automation and meters

Frequency : 434/470MHz

Max Range : 3km

Antenna : Non

Oscillator Type : TCXO

Protocol : LoRa

Contact Now

Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module

LoRa spread spectrum SX1268 long distance 433MHz wireless module small size low power consumption wireless module

Cansec Wireless LR1268NA-A SEMTECH SX1268 smart home IoT Solution Long Range Sub-1 GHz LoRa Module

Parameter		Min	Typ	Max	Unit
Operating Voltage		1.8	-	3.7	V
Operating Temperature		-40	-	85	°C
Current Consumption	Rest	-	1.5		uA
	Receive	-	12		mA
	Transmit Mode	-	110		mA
TX Power		-	19	20	dBm
RX Sensitivity		-	-	-148	dBm

LoRa spread spectrum SX1268 long distance 433MHz wireless module small size low power consumption wireless module

The LR1268 module is designed based on SX1268. SX1268 sub-GHz radio transceivers are ideal for long-range wireless applications. These devices support LoRa® modulation for LPWAN use cases and (G) FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols.

The devices are designed to comply with the physical layer requirements of the LoRaWAN specification released by the LoRa Alliance™.

The radio is suitable for systems targeting compliance with radio regulations including but not limited to China regulatory requirements and ETSI EN 300 220 (434 MHz). Continuous frequency coverage from 410 MHz to 810 MHz allows the support of the 490 and 780 MHz Chinese low-power short-range device bands.

Applications

Smart meters
Supply chain and logistics
Building automation
Agricultural sensors
Smart cities
Retail store sensors

Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module

FAQ

Q1: Are you a factory or trade company?

A1: We are a professional factory with 25 years experience.

Q2: Can you accept OEM/ODM?

A2: Sure, we have rich OEM&ODM experience.

Q3: Do you have quality assurance?

A3; Each of our products has undergone quality testing and has two years of free after-sales service.
