| Parameter | Min | Typ | Max | Unit |
| Operating Voltage | 1.7 | - | 3.6 | V |
| Operating Temperature | -20 | - | +70 | ℃ |
| Current
Consumption | Sleep Mode | - | 0.5 | - | uA |
| | Receive mode | - | 15 | - | mA |
| | Transmit Mode | - | 22 | - | mA |
| TX Power (For Carrier) | - | 3 | - | dBm |
| RX Sensitivity (For Lora Modulation) | - | - | -96 | dBm |
| Distance | 160 | m |

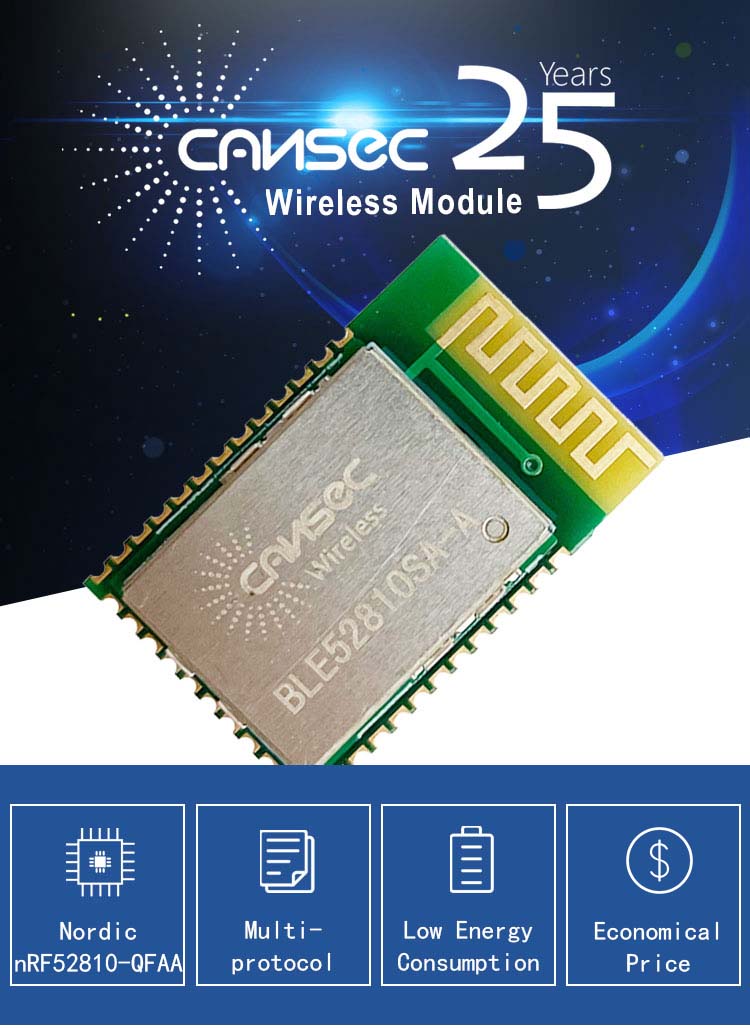

Pcb Antenna IoT Industrial Solution Cansec Blue Tooth Send Transmitter Module Nordic NRF52810-QFAA
1. The BLE52810 module is based on nRF52810 SoC which is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT and 2.4GHz ultra-low-power wireless applications.
2. The nRF52810 SoC is built around a 32-bit ARM® Cortex™-M4F CPU with 192kB + 24kB RAM.
3. The embedded 2.4GHz transceiver supports Bluetooth Low Energy, ANT and proprietary 2.4 GHz protocol stack.
4. It is on air compatible with the nRF51 Series, nRF24L and nRF24AP Series products from Nordic Semiconductor.
Feature Highlight
- Single-chip, highly flexible, 2.4GHz multi-protocol SoC
- 32-bit ARM Cortex-M4 Processor
- 1.7v to 3.6v operation
- Support concurrent Bluetooth low energy / ANTprotocol operation
- On-Chip NFC tag for Out-of-Band (OOB) Pairing
- Up to +3dBm output power
- -96dBm sensitivity, Bluetooth low energy
- Thread-safe and run-time protected
- Event-driven API
- 2 data rates (2Mbps/1Mbps)
- PPI - maximum flexibility
- Power-efficient applications and code simplification
- Automated power management system with automatic power management of each peripheral
- Configurable I/O mapping for analog and digital I/O
- 3 x Master/ Slave SPI
- 2 x Two-wire interface (i2c)
- UART (RTS/CTS)
- 3 x PWM
- AES HW encryption
- 12-bit ADC
- Real-Time Counter (RTC)
- Digital microphone interface (PDM)
